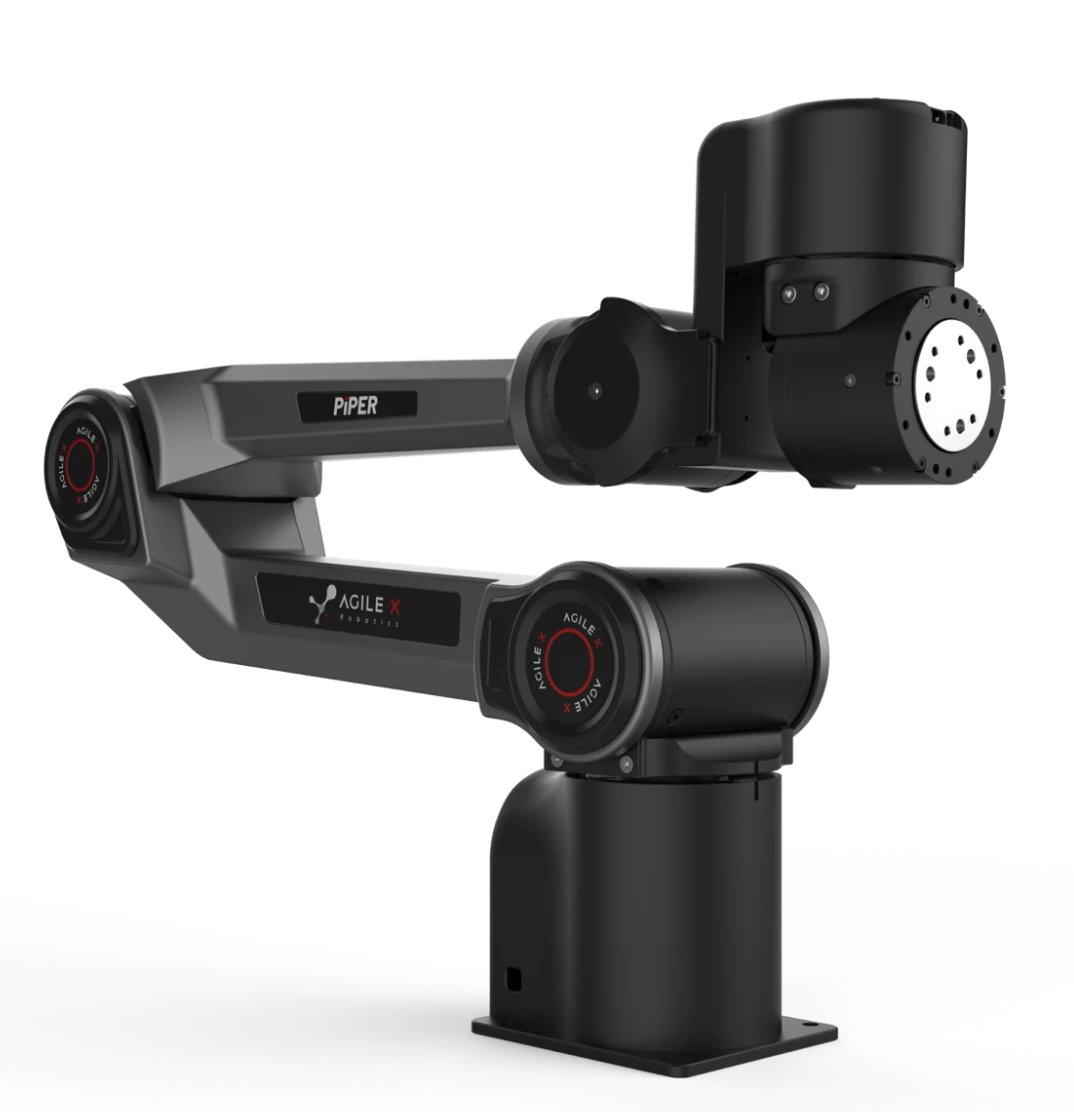

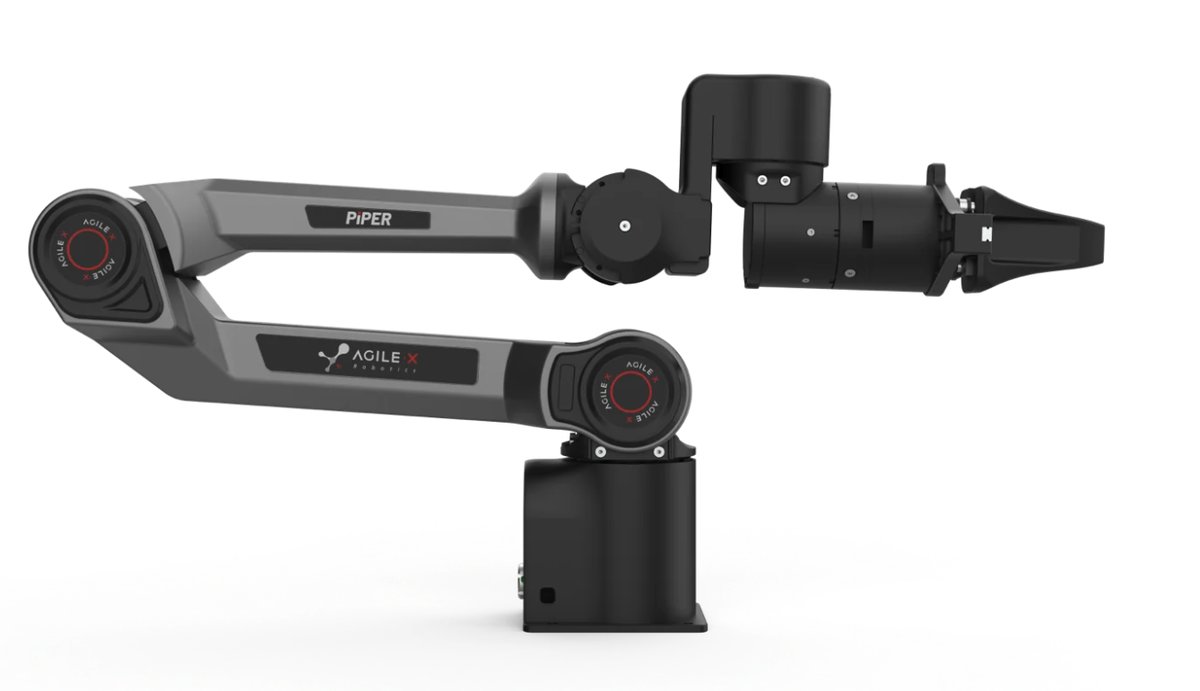

AgileX Robotics PiPER-X (Standard)

AgileX Robotics PiPER-X Standard: Precision Mobile Manipulation

The PiPER-X Standard by AgileX Robotics is a state-of-the-art 6-axis robotic arm designed from the ground up for integration with mobile platforms. It bridges the gap between static industrial arms and the dynamic needs of research, logistics, and field robotics, offering a powerful combination of strength, precision, and mobility in a lightweight package.

Key Capabilities

PiPER-X is engineered to excel in unstructured environments where traditional automation falls short. Its core strengths lie in its adaptable and high-performance design.

• High Payload-to-Weight Ratio: Constructed from carbon fiber and aluminum alloy, it weighs only 11 kg while supporting a payload of 5 kg, minimizing the impact on the mobile chassis's battery life and maneuverability.
• Exceptional Precision: Featuring high-performance harmonic reducers and advanced motion control algorithms, the arm achieves a repeatability of ±0.03 mm, enabling delicate and precise tasks.
• Optimized for Mobility: With a versatile 763 mm reach and a compact footprint, it's perfectly suited for navigating complex spaces and interacting with objects on and around its mobile base.
• Open-Source Ecosystem: Full native support for ROS and ROS2, along with a comprehensive SDK, empowers users to rapidly develop and deploy custom applications, leveraging a vast community of open-source software.

Applications

The flexibility of the PiPER-X makes it an ideal solution for a diverse range of mobile manipulation applications, including:

• Research and Development: A perfect platform for academic and corporate R&D in areas like autonomous navigation, human-robot interaction, and machine learning.
• Mobile Pick & Place: Automating logistics and material handling tasks in warehouses, labs, and light manufacturing facilities.
• Remote Inspection & Maintenance: Deploying on a UGV to perform inspections in hazardous or hard-to-reach locations, such as infrastructure monitoring or search and rescue support.
• Environmental Surveying: Automating the collection of soil, water, or air samples in agricultural or environmental science applications.

Why Choose The PiPER-X Standard?

Choosing the PiPER-X means investing in a fully integrated mobile manipulation solution. Its seamless compatibility with AgileX's leading mobile robot chassis eliminates common integration challenges, reducing development time and cost. For organizations looking to deploy sophisticated automation that can navigate and interact with the real world, the PiPER-X provides the performance, flexibility, and developer-friendly tools needed to succeed.
