AGIBOT D1 MaxPro IP67
About This Robot
Overview
The AGIBOT D1 MaxPro IP67 is a heavy-duty industrial quadruped robot engineered for performance in challenging environments. Designed for sustained payload transport, material handling, emergency-response support, and custom remote or autonomous operations, this platform offers a robust and versatile solution for industrial automation and field robotics.
Key Features
- Heavy Payload Capacity: Capable of carrying a rated payload of 50 kg, making it ideal for transporting tools, equipment, and materials.
- Extended Endurance: Equipped with a high-capacity 2,081 Wh battery, it operates for up to 5.5 hours unloaded and guarantees at least 2 hours of continuous work under a full 50 kg load.

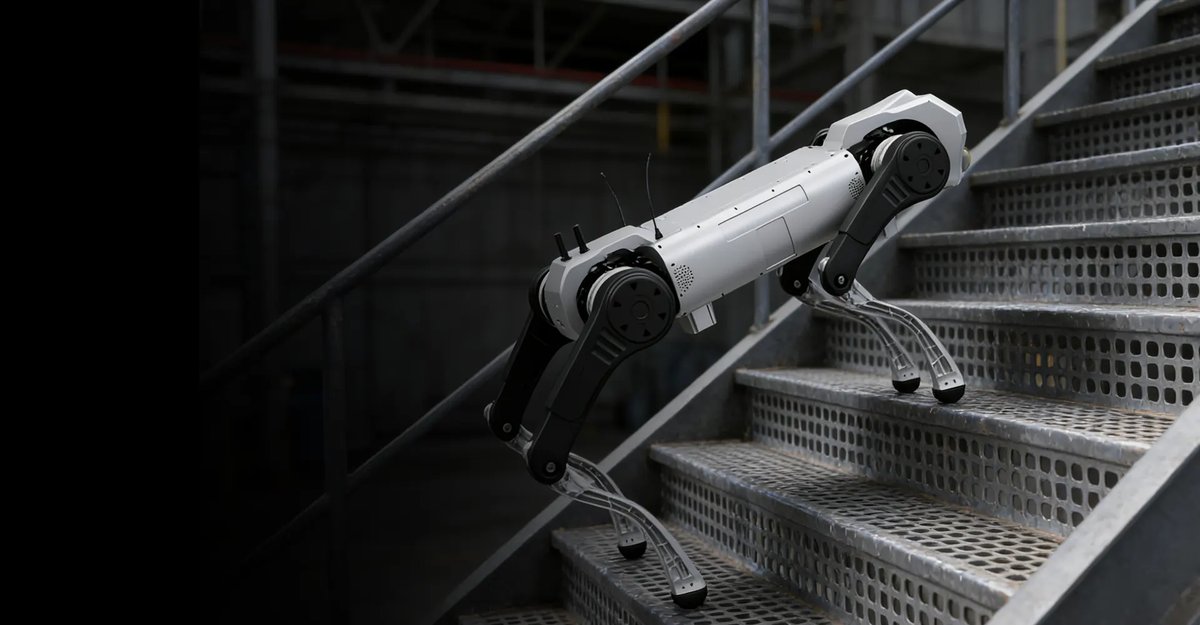

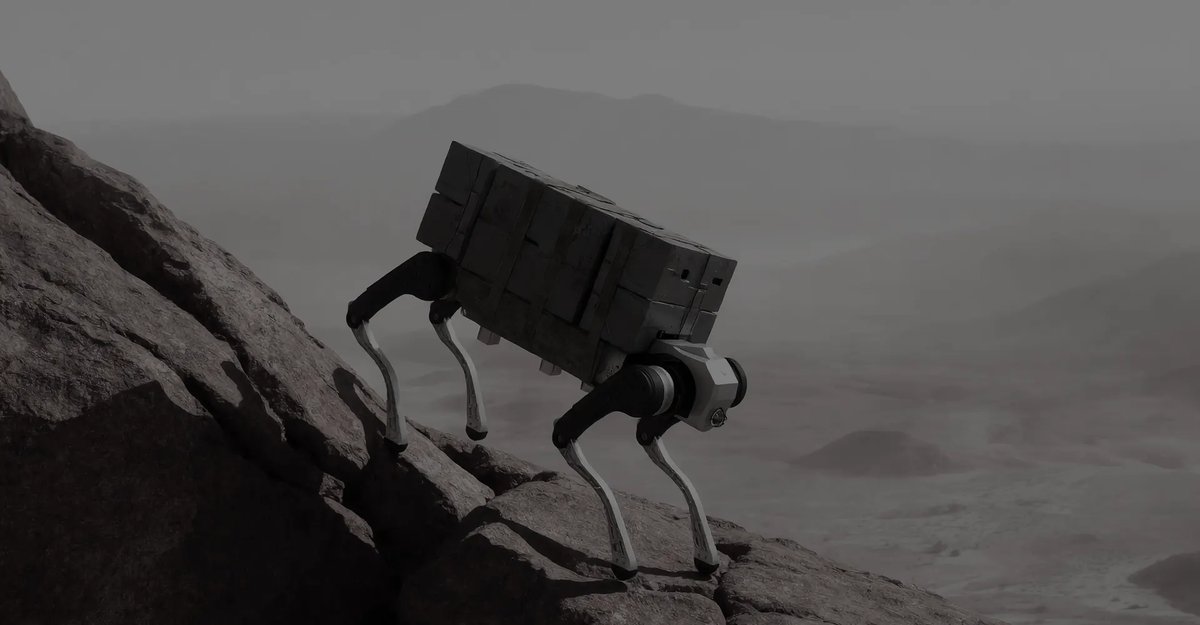

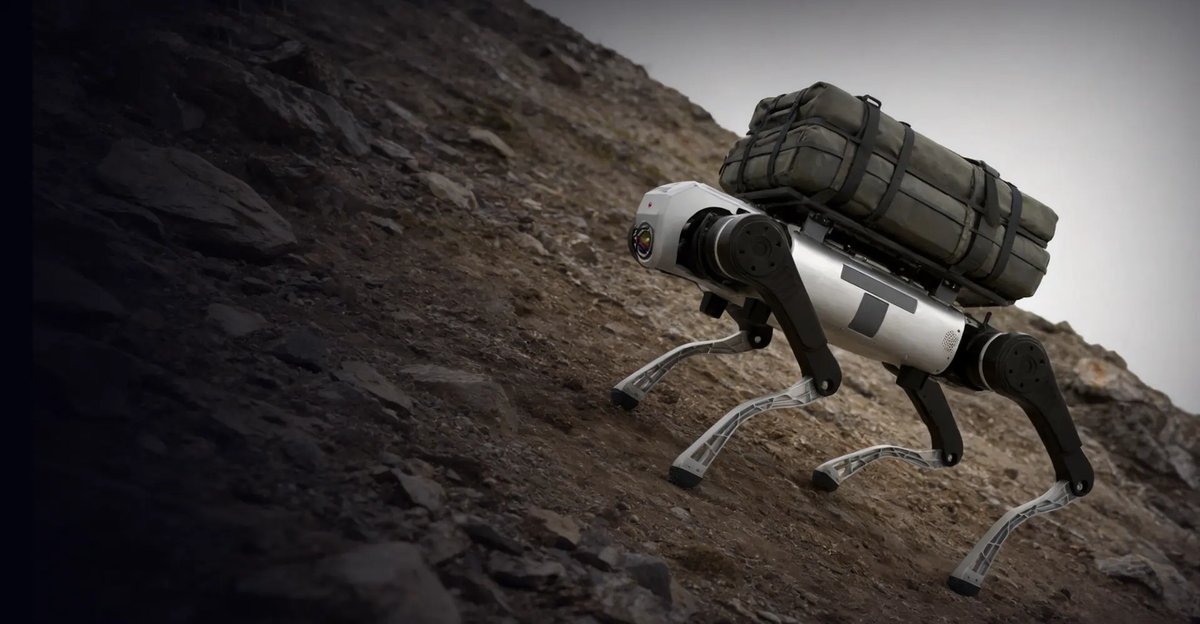

- All-Terrain Mobility: Climbs continuous stairs up to 30 cm, including open-riser industrial types, navigates 45-degree slopes, and features a self-righting capability to recover from falls.

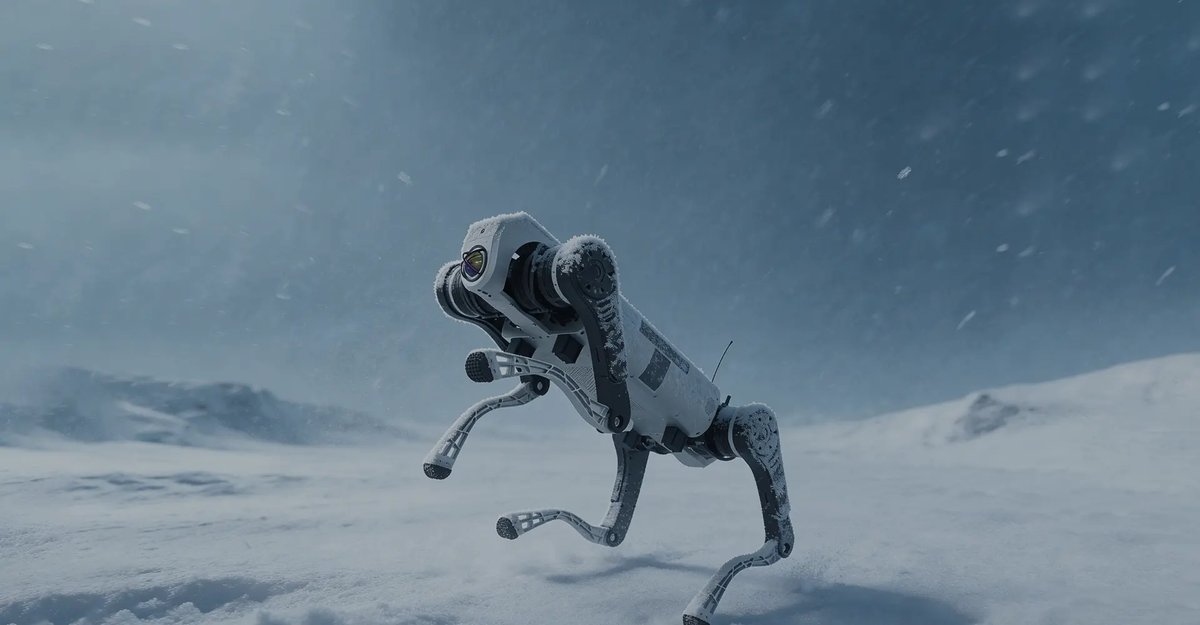

- Harsh Environment Ready: With an IP67 rating, it is protected against dust and water ingress, operates in temperatures from -20°C to 55°C, and can wade through water up to 20 cm deep.
- Advanced Sensing & Compute: Features a powerful 117 TOPS GPU compute module, a front-mounted 96-channel LiDAR for detailed environmental mapping, front and rear wide-angle cameras, and an automotive-grade IMU for precise navigation.
- Integrator-Friendly Platform: Comes with a TCP/ROS SDK and extensive power and data interfaces, providing a solid foundation for developers to integrate custom payloads and develop sophisticated autonomy.
Technical Specifications
| General | |
|---|---|
| Make | AGIBOT |
| Model | D1 MaxPro IP67 |
| Variant | Standard |
| Performance | |
| Rated Payload | 50 kg |
| Robot Weight | 68 kg |
| Max Slope | 45 degrees |
| Max Step Height (Continuous Stairs) | 30 cm |
| Special Capabilities | Self-righting after fall, open-riser stair climbing |
| Endurance | |
| Battery Capacity | 2,081 Wh |
| Operating Time (Unloaded) | 5.5 ± 0.5 hours |
| Operating Time (50 kg load) | ≥ 2 hours |
| Operational Range (Unloaded) | 21 ± 1 km |
| Operational Range (50 kg load) | 11 ± 1 km |
| Environmental | |
| IP Rating | IP67 |
| Operating Temperature | -20°C to 55°C |
| Max Water Depth | 20 cm |
| Sensing, Computation & Integration | |
| Compute Module | 117 TOPS GPU |
| LiDAR | Front 96-channel |
| Cameras | Front and Rear wide-angle |
| IMU | Automotive-grade |
| SDK | TCP/ROS SDK |
| Interfaces | Extensive power/data interfaces |
Applications
The D1 MaxPro IP67 is ideally suited for a wide range of demanding tasks across various sectors:

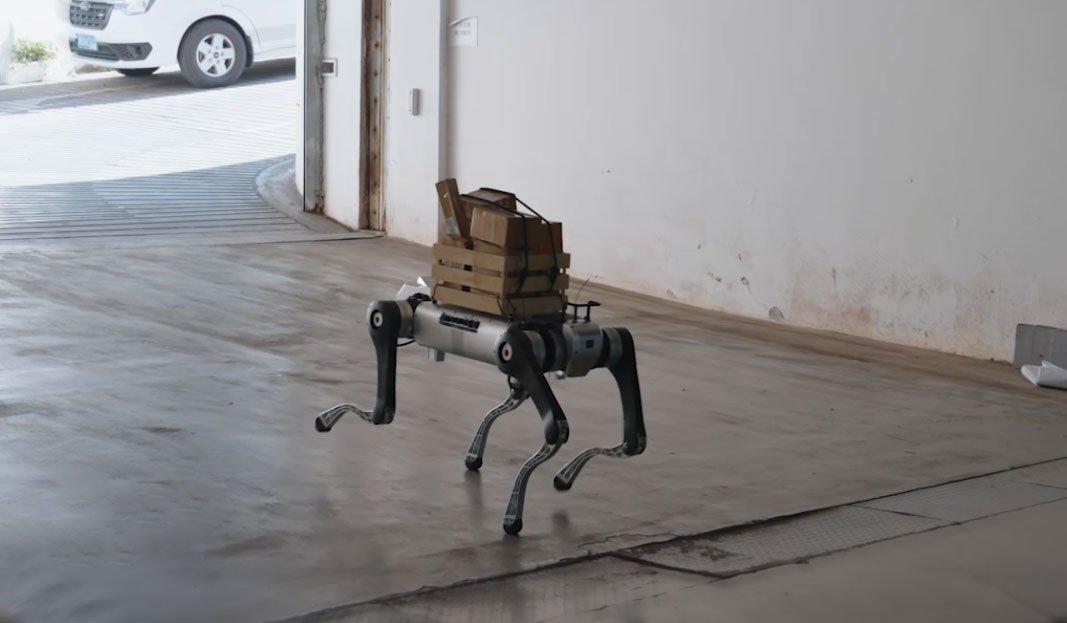

- Industrial Logistics: Autonomous material transport in factories, warehouses, and large industrial sites.

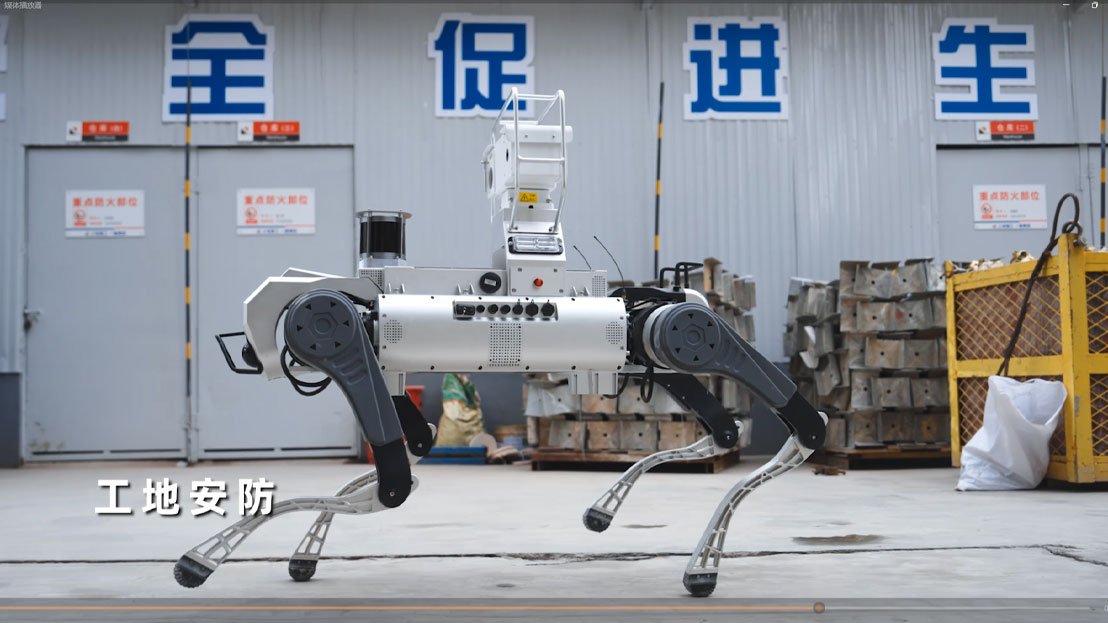

- Construction: Hauling tools and materials on complex and unstructured job sites.

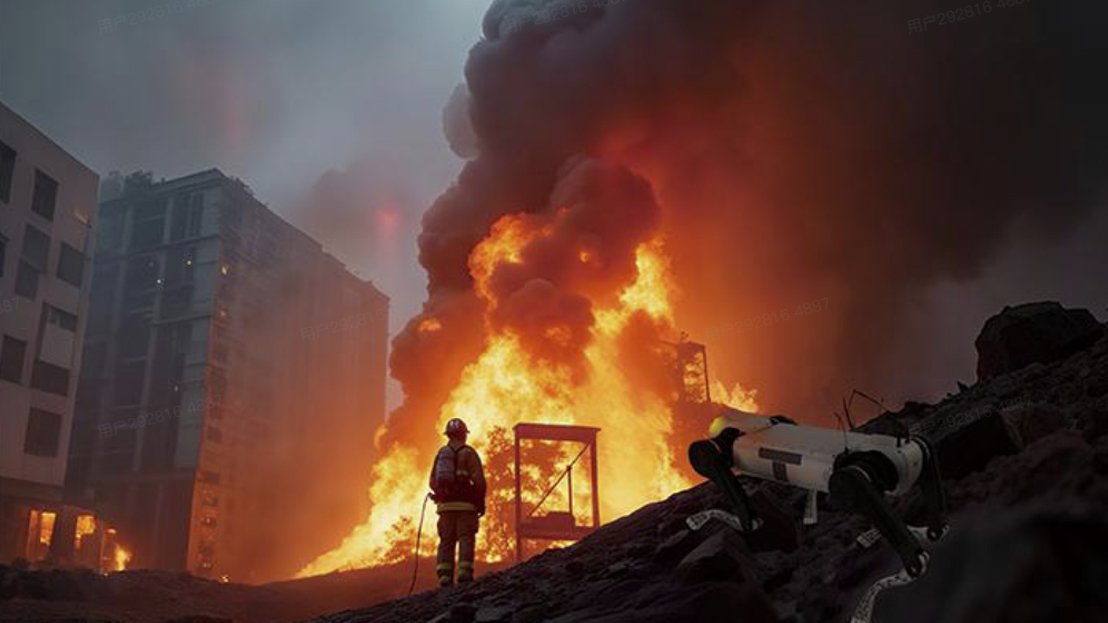

- Emergency Response: Deploying equipment and conducting reconnaissance in disaster zones or hazardous areas.
- Public Safety & Security: Patrolling large perimeters and providing remote surveillance.
- Inspection & Maintenance: Accessing and inspecting infrastructure in challenging locations like tunnels, power plants, and mines.
Benefits
Enhanced Safety
Reduces human exposure to hazardous environments, strenuous lifting, and repetitive tasks, minimizing workplace accidents.
Increased Efficiency
Automates material flow and data collection, operating continuously in conditions where human operation would be inefficient or impossible.
High Versatility
A single platform can be adapted for numerous applications through the integration of custom payloads, from manipulator arms to advanced sensor packages.
Operational Resilience
Engineered to be robust and reliable, the IP67 rating and wide operational temperature range ensure high uptime even in the most severe weather and site conditions.
Key Capabilities
- Carries a sustained rated payload of up to 50 kg for heavy-load transport, material handling and industrial payload mounting.
- A 2,081 Wh battery provides 5.5 ± 0.5 hours and 21 ± 1 km unloaded, or at least 2 hours and 11 ± 1 km under a 50 kg load, with quick battery swapping and optional autonomous charging.
- Climbs continuous stairs up to 30 cm, including open-riser industrial stairs, and can self-right after a fall.
- Supports 45-degree slopes and is published with a 3 m/s laboratory maximum speed; the current product is software-limited to 2 m/s for safety.
- IP67 protection, a -20°C to 55°C operating range and operation in water depths up to 20 cm support harsh industrial and outdoor environments.
- A 117 TOPS GPU with ARM CPU provides onboard compute for perception, control and secondary development.
- Perception hardware includes a front 96-channel LiDAR, front and rear industrial 2 MP wide-angle cameras and an automotive-grade IMU.
- TCP and ROS SDK support, x86/ARM packages, Wi-Fi 6, Bluetooth 5.2, optional 4G and industrial power/data ports support custom integration.
Applications
- Heavy-load material transport in factories, warehouses, yards and industrial campuses, carrying payloads up to 50 kg.
- Tool, equipment and supply movement across routes containing stairs, open-riser steps, slopes and uneven terrain.
- Emergency-rescue support and remote delivery of equipment into locations where human exposure should be reduced.
- Remote inspection and monitoring platforms carrying customer-selected cameras, communications or specialist sensing payloads.
- Construction, utility and infrastructure operations in rain, dust, temperature extremes and shallow standing water.
- Integrator-developed autonomous logistics, mission planning and perception workflows using TCP/ROS SDK interfaces and onboard compute.
- Research and development of heavy-payload quadruped locomotion, teleoperation and industrial human-in-the-loop workflows.
Why Choose It
- Its 50 kg sustained payload places it well above compact education and demonstration quadrupeds for meaningful industrial transport work.
- The 2,081 Wh battery and published loaded/unloaded endurance support longer missions and reduce battery-change frequency.
- Thirty-centimetre continuous stair capability, open-riser stair access, self-righting and 45-degree climbing address terrain that conventional AMRs cannot handle.
- IP67 protection, wide-temperature operation and published 20 cm water-depth capability make it a stronger candidate for outdoor and harsh-site deployment.
- A 117 TOPS compute platform, TCP/ROS SDK and up to 720 W of payload power give integrators a substantial base for custom systems.
- Buyers should still confirm purchase price, regional certifications, mechanical mounting details, warranty, service coverage and the scope of packaged autonomy before deployment.
Key Features
Heavy-duty carrying capacity for material transport, equipment mounting and industrial payload integration.
Delivers 5.5 ± 0.5 hours and 21 ± 1 km unloaded, or at least 2 hours and 11 ± 1 km under a 50 kg load, with quick battery swapping and optional autonomous charging.
Climbs continuous and open-riser stairs up to 30 cm, handles 45-degree slopes and can self-right after falls.
Rated from -20°C to 55°C and published for operation in water depths up to 20 cm.
Front 96-channel LiDAR, dual cameras, IMU, TCP/ROS SDK, x86/ARM packages and up to 720 W payload power support custom systems.
Technical Details
TCP and ROS SDK with x86/ARM packages supports custom autonomy; no standard out-of-box mission or patrol workflow is published; autonomous charging station is optional
2,081 Wh battery; quick battery swapping; approximately 4.5 hours from 10% to 90%; optional autonomous charging station
1270 x 570 x 730 standing; 1360 x 570 x 300 pronemm
IP67; -20°C to 55°C; published operation in water depths up to 20 cm
50kg
5.5 ± 0.5 unloaded; ≥2 under a 50 kg loadhours
45degrees
3 laboratory maximum; current product software-limited to 2m/s
Front 96-channel LiDAR, front/rear wide-angle cameras and automotive-grade IMU; TCP/ROS SDK supports custom mapping and navigation development
3 x Gigabit Ethernet, 2 x USB 3.0, 1 x Fast Ethernet, serial port; 12 V / 24 V / 48 V payload power up to 720 W; TCP and ROS SDK with x86/ARM packages
Front 96-channel LiDAR (360° x 90° coverage, up to 120 m range, 1.5 cm stated accuracy), front/rear industrial 2 MP cameras and automotive-grade IMU
Integrated-display remote controller with real-time video, manual emergency stop and up to 500 m range; Wi-Fi 6, Bluetooth 5.2, optional 4G and Ethernet/serial interfaces
68kg
Remote controller includes manual emergency stop; LiDAR, cameras and IMU provide perception inputs, but certified obstacle-avoidance and safety-zone behaviour are not published
Continuous stair climbing up to 30 cm, including open-riser industrial stairs; self-righting after fallsmm / text
