DEEP Robotics DR02
About This Robot
Summary:
DEEP Robotics DR02 is a commercial industrial-grade bipedal humanoid designed for demanding indoor and outdoor work rather than only controlled laboratory demonstrations. The standard DR02 stands 1.75 m tall, weighs 65 kg with battery, has 21 active DoF, carries up to 10 kg with both arms, uses a 1,440 Wh swappable battery and is protected to IP66 across a -20°C to 55°C operating range. It walks at up to 1.5 m/s for normal operation, with a 4 m/s laboratory extreme test figure, and is rated for 25 cm continuous stairs and 20° slopes. The platform supports motion development, OTA updates, autonomous navigation and intelligent obstacle avoidance, while exact runtime, single-arm payload, end-effector package and regional certifications should still be confirmed for each deployment.
Key Capabilities
- IP66 full-body dust and water protection for all-weather outdoor operation, with an official -20°C to 55°C operating range.
- Human-scale 1,750 mm bipedal platform weighing 65 kg with battery and 21 active degrees of freedom.
- Maximum dual-arm payload of 10 kg and 68 cm arm length excluding the end effector for practical cargo and equipment handling.
- 1.5 m/s maximum walking speed for normal operation; 4 m/s is an official laboratory extreme test figure not opened for external use for safety reasons.
- Stable traversal of 25 cm continuous stairs and 20° slopes for mixed industrial and outdoor environments.

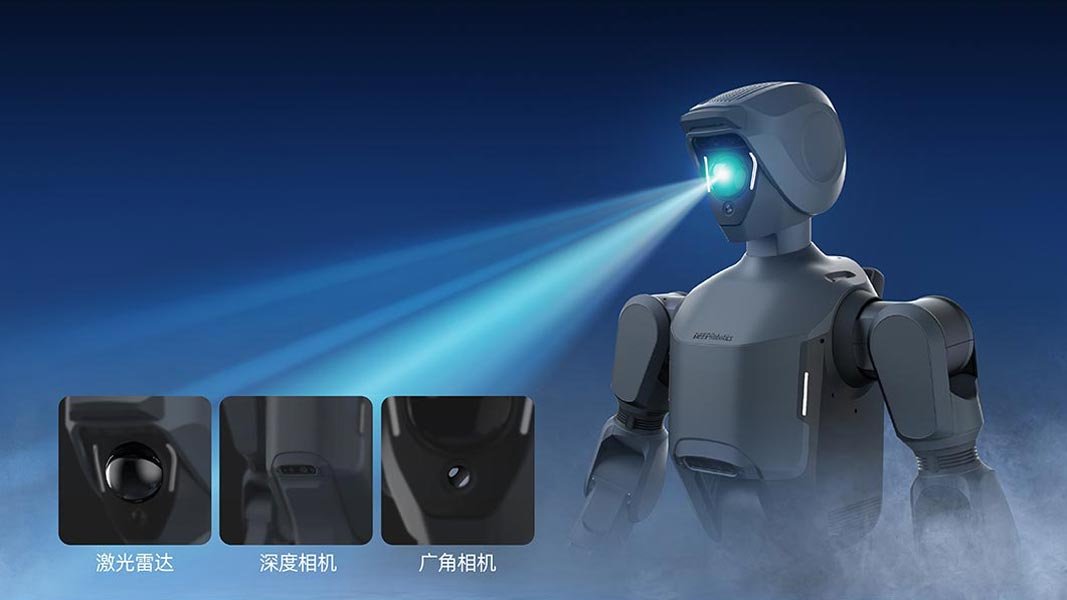

- Standard hardware includes 1 LiDAR, 1 wide-angle camera, microphone array/speaker and an industrial 64-bit octa-core processor with 16 GB + 128 GB.
- Swappable 20 Ah / 1,440 Wh battery, modular quick-disassembly design and common left/right arm and leg modules to reduce downtime.
- Supports motion development, OTA updates, autonomous navigation and intelligent obstacle avoidance; SLAM mapping/navigation and voice interaction are marked for future OTA in the 2026 leaflet.
Applications
- Security patrol and site monitoring in rain, humidity, dust and wide-temperature environments where ordinary indoor humanoids may be unsuitable.
- Factory operations and material movement between work areas, supported by a 10 kg dual-arm payload and human-scale reach.
- Warehouse and intralogistics cargo transport across suitable floors, ramps and continuous stairs within published mobility limits.
- Emergency equipment delivery and remote support in outdoor or industrial locations where IP66 protection and broad temperature tolerance matter.
- Industrial inspection or monitoring workflows using LiDAR, wide-angle vision, autonomous navigation and obstacle avoidance.
- Developer-led motion applications using the standard DR02 secondary-development capability and Gigabit Ethernet interface.
- Continuous-operation environments that benefit from a swappable 1,440 Wh battery and modular quick-replace limbs, subject to spare-parts and service planning.
Why Choose It
- All-weather differentiation: IP66 full-body protection and -20°C to 55°C operation materially expand the environments where a full-size humanoid can be considered.
- Concrete industrial mobility: 1.5 m/s walking, 25 cm continuous stairs and 20° slopes are published, comparable buyer-facing performance metrics.
- Useful handling capacity: a 10 kg maximum dual-arm payload supports practical cargo and equipment-transfer tasks.
- Maintainability by design: swappable battery and modular quick-disassembly of major limb components are aimed at reducing downtime.
- Development pathway: motion development, OTA updates, autonomous navigation and obstacle avoidance provide a foundation for task-specific integration.
- Qualification points remain: runtime, single-arm payload, exact end effector, safety certification and regional after-sales coverage should be confirmed before deployment.
Key Features
IP66 full-body protection with -20°C to 55°C operating range for rain, humidity, dust, cold storage and hot workshops
1.5 m/s normal walking, 25 cm continuous stairs and 20° slopes; 4 m/s is a lab-only extreme test figure
Maximum dual-arm payload of 10 kg with 68 cm arm length excluding the end effector
Forearms, full arms and full legs are designed for rapid replacement; left/right limb modules are shared
20 Ah / 1,440 Wh swappable battery supports service-oriented operation; runtime is not publicly specified
Technical Details
Autonomous navigation and intelligent obstacle avoidance; SLAM mapping/navigation and voice interaction are marked for future OTA; task autonomy remains application-specific
10kg
Swappable 20 Ah / 1,440 Wh battery; charging method and charging time are (TBC)
21count
No dexterous hand specified on standard DR02; hand/end-effector DoF are (TBC)count / text
Standard DR02 has no dexterous hand specified; exact supplied end-effector configuration is (TBC)
1750mm
Bipedal; 25 cm continuous stairs and 20° slopes; 4 m/s laboratory extreme test speed is not open for external use for safety reasons
(TBC)hours
1.5m/s
1 x LiDAR, 1 x wide-angle camera, microphone array and speaker; current standard-model leaflet does not list a depth camera
IP66 and -20°C to 55°C environmental readiness with lab-defined mobility limits; model-specific CE/UKCA/FCC certification status is (TBC)
(TBC)kg
Supports motion development, OTA updates, 72 V power interface and Gigabit Ethernet; exact public SDK/API package is (TBC)
65kg
